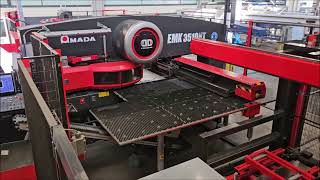

Amada EMK 3510 NT + L III + PR III UL turret punch press
Ludwigsburg6926 km to "United States/Columbus"
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+49 7141 48...
Show
+49 7141 4882799
+49 176 246...
Show
+49 176 24697022
Germany
Turret punch press parts
Year: 2008
Machine hours: 116.000 h
Amada EMK 3510 NT
Control: AMNC-F
Punching force: 300kN
Working area X/Y: 2500 x 1270 mm (With repositioning: 5000 x 1270 mm)
Max. sheet thickness: 4,5 mm (mild steel)
Max. table loading weight: 150 kg
Feed rate X/Y: 100 / 80 m/min (128 m/min simultaneous)
Positioning tolerance: +/- 0,1 mm
Number of stations in turret: 58
AutoIndex stations: 4 (2 x B, 2 x E)
Feed rate turret: 30 1/min
Max. number of hits: 1000/min
Machine frame: Bridge frame
Punching drive: servo-electric Twin Drive
Drives turret + table: AC-Servo motors
Clamps: pneumatical
Electrical connection: 400V / 50Hz
Electrical consumption: 1kW – 7kW
Air consumption machine: 250 l/min
Air consumption Air Jet Vakuum: 250 l/min
Machine weight: 22 to
Loading unit Loader L III 250:
Sheet size min.: 700 x 300 mm
Sheet size max.: 2500 x 1250 mm
Material thickness: 0,5 – 8,0 mm
Max. loading weight: 250 kg
Max. stack height: 300 mm
Max. pallet weight: 3000 kg
Number of magnets per pallet: 3
Number of suction cups: 28 pieces
Double sheet control: yes, with sheet thickness detector
Air consumption: 650 l/min, 6 bar inlet pressure
Electrical connection: 400V
Unloading unit Parts Remover PR III UL 250:
Part size min. / max.: 200 x 200 mm / 1000 x 1000 mm
Sheet thickness: 0,5 – 3,0 mm (4mm for EM-Serie)
Max. part weight: 25 kg
Storage table size: 3400 x 1200 mm
Min. part size for unloading clamps: 1400 x 300 mm
Max. part size for unloading clamps: 2500 x 1250 mm
Max. stack height skeleton table: 400 mm
Max. weight skeleton table: 2000 kg
Max. stack height storage table: 400 mm
Max. weight storage table: 4000 kg
Max. feed rate X- / Y-direction: 120 / 80 m/min
Air consumption: 400 l/min, 6 bar inlet pressure
Electrical connection: 400V
Baujahr: 2008
Maschinenstunden: 116.000 h
Amada EMK 3510 NT
Steuerung: AMNC-F
Stanzkraft: 300kN
Verfahrbereich X/Y: 2500 x 1270 mm (Mit Nachsetzen: 5000 x 1270 mm)
Max. Materialdicke: 4,5 mm (Normalstahl)
Max. Tischbelastung: 150 kg
Verfahrgeschwindigkeit X/Y: 100 / 80 m/min
Achssimultan: 128 m/min
Positionsabweichung: +/- 0,1 mm
Anzahl Stationen Revolver: 58
Davon AutoIndex Stationen: 4 (2 x B, 2 x E)
Revolverdrehgeschwindigkeit: 30 1/min
Max. Anzahl Stanzhübe: 1000/min
Maschinenrahmen: Brückengestell
Pressenantrieb: servo-elektrischer Twin Drive
Antriebe Revolver + Tischantrieb: AC-Servo Motoren
Klemmung Spannpratzen: pneumatisch
Elektrischer Anschluß: 400V / 50Hz
Elektrischer Verbrauch: 1kW – 7kW
Druckluftbedarf Maschine: 250 l/min
Luftbedarf Air Jet Vakuum: 250 l/min
Maschinengewicht: 22 to
Beladeeinheit Loader L III 250:
Blechabmessung min.: 700 x 300 mm
Blechabmessung max.: 2500 x 1250 mm
Materialstärke: 0,5 – 8,0 mm
Max. Ladegewicht: 250 kg
Max. Abstapelhöhe: 300 mm
Max. Palettenbelastung: 3000 kg
Anzahl Magnete pro Palette: 3
Anzahl Sauggreifer: 28 Stück
Doppelblechkontrolle: ja, über Blechdickenmessgerät
Druckluftverbrauch: 650 l/min, 6 bar Eingangsdruck
Elektrischer Anschluß: 400V
Entladeeinheit Parts Remover PR III UL 250:
Teilegröße min. / max.: 200 x 200 mm / 1000 x 1000 mm
Blechdicke: 0,5 – 3,0 mm (4mm für EM-Serie)
Max. Teilegewicht: 25 kg
Ablagetischgröße: 3400 x 1200 mm
Min. Teilegröße für Entladeklammern: 1400 x 300 mm
Max. Teilegröße für Entladeklammern: 2500 x 1250 mm
Max. Abstapelhöhe Restgittertisch: 400 mm
Max. Gewicht Restgittertisch: 2000kg
Max. Abstapelhöhe Ablagetisch: 400mm
Max. Gewicht Ablagetisch: 4000kg
Max. Geschwindigkeit Entladearm X- / Y-Richtung: 120 / 80 m/min
Druckluftverbrauch: 400 l/min, 6 bar Eingangsdruck
Elektrischer Anschluß: 400V
