New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant

PDF
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 1 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 2 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 3 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 4 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 5 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 6 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 7 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 8 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 9 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 10 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 11 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 12 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 13 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 14 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 15 - Machineryline
New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant | Image 16 - Machineryline
Interested in the ad?
1/16
PDF
Price:
on request
Ask for price
Contact the seller
Year of manufacture: 2026-02
Location: China Zhengzhou11527 km to "United States/Columbus"
Placed on: Feb 9, 2026
Machineryline ID: VR49490
Description
Capacity: 180 m3/h
Condition
Condition: new
Warranty:: 12 months
Additional services

More details — New HZS180 Concrete Batching Plant 180m³/h | SICOMA mixer stationary concrete plant

HZS180 Stationary Concrete Batching Plant | 180 m³/h
----------------------------------------------------------------------------------
⭐ Key Features

● Rated capacity: 180 m³/h (3 m³/batch)

● Mixer: SICOMA MAO4500/3000 twin-shaft concrete mixer

● Aggregate feeding: Belt conveyor type, stable & high efficiency

● Control system: Fully automatic computer control (Bosure – top brand in China, Siemens/Schneider optional)

● Weighing accuracy: Aggregate ±2%, Cement/Water/Additive ±1%

● Suitable for commercial concrete production and large infrastructure projects
----------------------------------------------------------------------------------

I. Main Technical Parameters

● Model: HZS180 Concrete Batching Plant

● Rated Productivity: 180 m³/h (3 m³/batch)

● Concrete Mixer: SICOMA MAO4500/3000

● Control System: Computer control (Bosure)

● Aggregate Lifting Type: Belt conveyor

● Aggregate Batching Machine: PLD4800 – 4 bins, separate weighing

● Cement Silo: 2 × 200T bolted vertical silos

● Screw Conveyor: 2 × LSY323 × 10 m

● Discharging Height: 4 m

● Max. Aggregate Diameter: 80 mm

● Aggregate Measuring Accuracy: ±2%

● Cement / Water / Additive Measuring Accuracy: ±1%
----------------------------------------------------------------------------------

II. Standard Configuration (Industrial Grade)

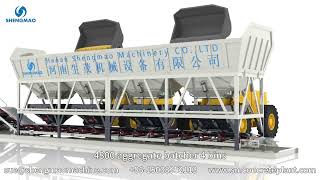

1. Batching System (PLD4800 – 4 bins, separate weighing)

11 kW motorized pulley (1 set) | 2.6 m³ weighing hopper (4 sets) | 25 m³ aggregate storage bins (4 sets) |
4.1 m feeding height | Cylinders (100×250 mm ×8, 100×150 mm ×4) |
2T tension sensors (12 sets) | 0.55 kW vibrators (4 sets) |
16 m × 1 m horizontal belt | Overall steel structure (included)

2. Aggregate Conveying System

25 m × 1 m chevron belt (30°) | 45 kW motor | Axial reducer |
Upper & lower carrier rollers | Counterbalance tension device |
Heavy-duty conveyor structure | Double sidewalks with handrails

3. Central Mixer – SICOMA MAO4500/3000

Output: 3000 L / batch

Feeding capacity: 4500 L

Productivity: 180 m³/h

Motors: 2 × 55 kW

Automatic lubrication system

Overall weight: approx. 9.2 T

4. Mixing Tower

Steel standing legs | 2-layer platform with handrails | Walkways |
4.5 m³ waiting hopper with vibrator | Dust removal system (16 bags) |
Finished product collecting hopper

5. Weighing Systems

Water: 0.85 m³ tank | 3 load cells | Pumps & pipeline
Cement: 1.8 m³ bin | 3 load cells | Butterfly valve & vibrator
Additive: 0.06 m³ bin | Additive pump | Load cell & pipeline

6. Pneumatic System

15 kW air compressor | Air storage tanks (2 × 1 m³) |
Solenoid valves | Oil-water separator | Full pipeline system

7. Electric Control System (Fully Automatic)

Strong & weak current cabinets | Control room with air conditioner |
Bosure PLY1200 (8 weighings) control system |
Industrial control computer | LCD | CCTV | UPS | Printer |
Schneider contactors & electrical components | Full cables & accessories

8. Cement Silos

200T capacity × 2 sets

Equipped with pulse dust collector, safety valve, ladder, guardrail, level meter, flow promotion device

Silo capacity and quantity can be customized

9. Screw Conveyors

Φ323 mm × 10 m | 18.5 kW motor | 2 sets

? Price, delivery time, layout drawing and optional configuration are available upon request.
Contact us for a complete concrete batching plant solution.
