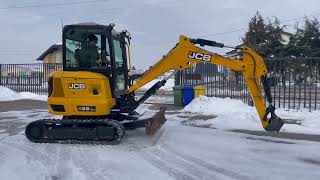

We are selling a JCB 35Z-1 mini excavator, CONDITION - NEW
The excavator is in factory new condition.

Model: JCB 35Z-1

Year of production: 2023
Number of working hours: 350

Of the connections it comes with:
- Mechanical quick coupling for changing work tools
- Digging bucket 300 mm
- Hammer installation
- Air conditioner

Other specifications of the machine:

Engine:

Engine model: Perkins 403J-17 (EU Stage V)
Fuel: Diesel
Cooling: Water
Engine power: 18.4 kW at 2200 rpm
Max. torque (ISO 14396): 91.9 Nm at 1600 rpm
Engine displacement: 1662 cm³
Maximum gradient (climbing): 30°
Starter electric motor: 2 kW
Battery: 12V / 80Ah
Alternator: 85 A (air-cooled)
Hydraulic system:
Pump capacity: 38 cm³
Nominal flow at 2000 rpm: 76 l/min
Main pressure (excavation/travel): 250 bar
Main pressure for upper structure swing: 216 bar
Auxiliary hydraulic pressure (low):
Standard: 190 bar
Adjustable: 120 – 250 bar
Auxiliary hydraulic pressure (high):
Standard: 190 bar
Adjustable: 120 – 250 bar
Auxiliary hydraulic flow (low): 30 l/min
Auxiliary hydraulic flow (high): 70 l/min
Pump type: Variable displacement piston

Track width (rubber): 300 mm
Track tension: grease
Travel speed - slow: 2.8 km/h
Travel speed - fast: 4.5 km/h

Weights:
Operating weight: 3556 kg
Transport weight: 3371 kg

Dimensions:
Track length on ground: 1590 mm
Overall width of superstructure: 1550 mm
Height to top of cab: 2482 mm
Ground clearance: 275 mm
Track width: 1400 mm
Overall width with tracks: 1750 mm
Overall length of machine (with standard arm): 4851 mm
Track height: 480 mm

Possibility of purchasing a bucket with the machine
Possibility of purchasing on lease
