Interested in the ad?
1/28
PDF
Price:
on request
Ask for price
Contact the seller
Brand: Zayer
Model: 30 KCU 10000
Year of manufacture: 1996
Net weight: 60,000 kg
Location: Netherlands Babberich6579 km to "United States/Columbus"
Placed on: Oct 16, 2025
Machineryline ID: ZD47832
Description
X-axis travel: 10,000 mm
Y-axis travel: 1,500 mm
Z-axis travel: 2,500 mm
Power: 37 kW
Overall dimensions: 16 m × 4.2 m × 6.8 m
Condition
Condition: used

More details — Zayer 30 KCU 10000 metal milling machine

Type: 30 KCU 10000

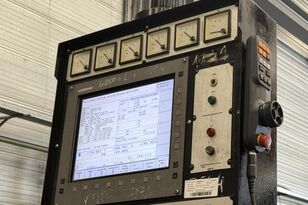

Besturing: HeidenHain iTNC530
X-as bereik: 10000 mm
Y-as bereik: 1500 mm
Z-as bereik: 2500 mm
Tafellengte: 12000 mm
Tafelbreedte: 1250 mm
Tafelbelasting: 20000Kg
Vermogen aan spil: 37 kW
Spilsnelheden: 3500 Rpm
Spindelopname: 50 ISO/Bt/Mk
Voeding X-as: 10000 mm/min
Voeding Y-as: 10000 mm/min
Voeding Z-as: 10000 mm/min
Freeskop indexeerbaar: Orthogonal 1 Degrees 2 sides °
New HeidenHain iTNC530 controller in 2015
New bearing in head September 2025
X/Y/Z Linear measuring system
IKZ 15 Bar High pressure coolant
Optional 2 x floorplates 6000 x 1250 x 245 mm #9240
T-28 with 5 T Slotts and 250 Jump
